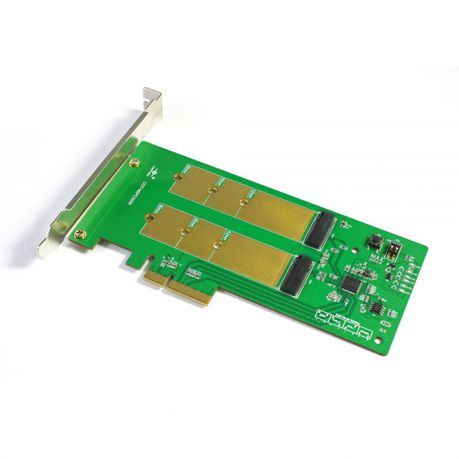

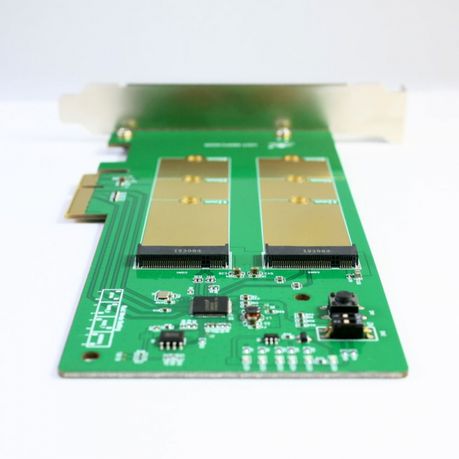

Vantec Dual M.2 SSD RAID PCIe X4 Host Card

Vantec Dual M.2 SSD RAID PCIe X4 Host Card
VANTEC UGT-M2PC300R

The UGT-M2PC300R exploits the latest M.2 SSD for Ultra-Fast RAID capability. The design uses a Gen 2 Hardware RAID Controller and the simplest Standard AHCI Drivers that are already built into all the major OS. This saves time and takes the worries of looking for updated drivers every time there is a major OS update. This RAID will offer very Fast Boot when configuring to boot Server, Workstation or Desktop System. The RAID offers auto rebuilding with a background or off-line capability. It is created to plug into PCIe x4 or better slot with support for PCI Express V3.0 Specs and compatible with V2.0/V1.0.
This RAID hardware design also helps offload task and reduce CPU resources. It is transparent to the OS, yet intimately link via the fast PCIe Bus, it is simple, manageable and Heat Management using Cooper Heat Spreader.

Specifications
Model: UGT-M2PC300R
M.2 interfaces: 2 x M.2 SSD interface with B Key only, NOT for NVMe
M.2 Size: Length support 22x42, 22x60, or 22x80mm
RAID Mode: RAID 0, 1, SPAN, Individual
PCIe Connector: PCIe x4 or better (x8 or x16)
PCIe Power: PCIe Bus powered (3.3V)
Item Dimensions (LxWxH): 7.4 x 4.8 x 0.8 inches / 189 x 121 x 20 mm
Item Weight: 3.1 oz. / 87 g
OS Support: Windows 7/8/8.1/10, or Linux with AHCI support

System Requirements:
Available system board PCIe x4 or x8 or x16 slot
OS support like Windows 7/8/8.1/10, or Linux with AHCI support

Environmental:
Operating Temperature 0 ? to +45?
Operating Humidity 10% to 85 % RH (no condensation)
Storage Temperature -10? to +70?
Storage Humidity 5% to 90% RH (no condensation)

Warranty
1 Year

Package Contents
1 x Vantec Dual M.2 SSD RAID PCIe x4 Host Card
1 x M.2 mounting kit
1 x Screwdriver
1 x Quick Guide
1 x Low Profile Bracket

What's in the box
1 x Vantec Dual M.2 SSD RAID PCIe x4 Host Card
1 x M.2 mounting kit
1 x Screwdriver
1 x Quick Guide
1 x Low Profile Bracket
