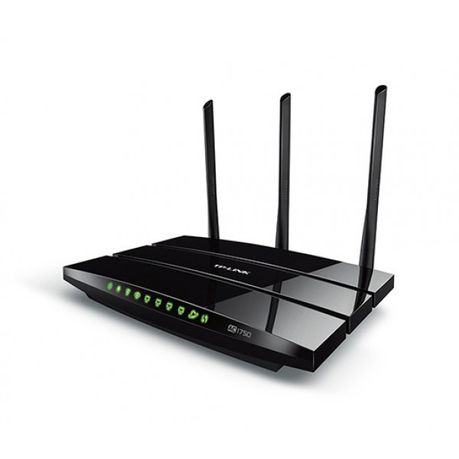

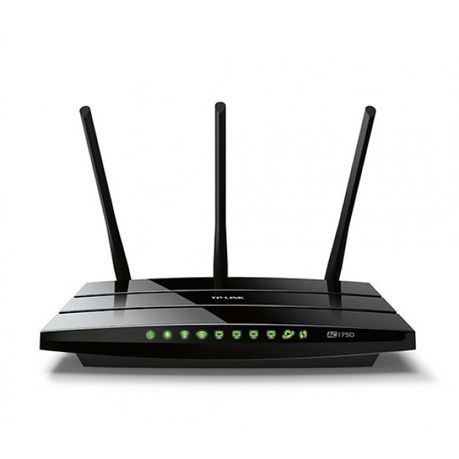

TP-Link's Archer C7 comes with the next generation Wi-Fi standard - 802.11ac, 3 times faster than wireless N speeds and delivering a combined wireless data transfer rate of up to 1.75Gbps. With 1.3Gbps wireless speeds over the crystal clear 5GHz band and 450Mbps over the 2.4GHz band, the Archer C7 is the superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks. The Archer C7 operates over both the 2.4GHz and 5GHz bands, ensuring amazing wireless performance. Simultaneous Dual Band offers you the flexibility of two dedicated networks - with multiple times the bandwidth for your needs. Simple tasks like sending e-mails or web browsing can be handled by the 2.4GHz band while bandwidth intensive tasks like online gaming or HD video streaming can be processed by the 5GHz band - all at the same time. With one gigabit WAN port and four gigabit LAN ports, speeds can be up to 10? faster than standard Ethernet connections. The Archer C7 is a powerful hub to support a robust and extremely fast wired network. With the two multi-functional USB 2.0 ports, you can share printers, files and media with different devices through your local network or via the ftp server while away from home.
Interface
- 4 10/100/1000Mbps LAN Ports
- 1 10/100/1000Mbps WAN Port
- 2 USB 2.0 Ports
Button
- WPS/Reset Button
- Wireless On/Off Switch
- Power On/Off Button
- External Power Supply : 12VDC / 2A
- Dimensions ( W x D x H ): 243x160.6x32.5mm
- Antenna Type: Three detachable antennas ( RP-SMA)
Wireless Standards
- IEEE 802.11ac/n/a 5GHz
- IEEE 802.11b/g/n 2.4GHz
- Frequency: 2.4GHz and 5GHz
- Signal Rate:
5GHz: Up to 1300Mbps
2.4GHz: Up to 450Mbps
- Reception Sensitivity: 5GHz
11a 6Mbps-96dBm
11a 54Mbps: -79dBm
11ac HT20: -71dBm
11ac HT40: -66dBm
11ac HT80: -63dBm
- 2.4GHz
11g 54M: -77dBm
11n HT20: -74dBm
11n HT40: -72dBm
Transmit Power CE:
- <20dBm(2.4GHz)
- <23dBm(5GHz)
- FCC: <30dBm
- Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
- Wireless Security: 64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption
- Quality of Service: WMM, Bandwidth Control
- WAN Type: Dynamic IP/Static IP/PPPoE/
- PPTP(Dual Access)/L2TP(Dual Access)/BigPond
Management
- Access Control
- Local Management
- Remote Management
- DHCP
- Server, Client, DHCP Client List,
- Address Reservation
- Port Forwarding
- Virtual Server, Port Triggering, UPnP, DMZ
- Dynamic DNS
- DynDns, Comexe, NO-IP
- VPN Pass-Through
- PPTP, L2TP, IPSec
- Access Control: Parental Control, Local Management Control, Host List, Access
- Schedule, Rule Management
- Firewall Security
- DoS, SPI Firewall
- IP Address Filter/MAC Address Filter/Domain Filter
- IP and MAC Address Binding
- Protocols
- Supports IPv4 and IPv6
- USB Sharing
- Support Samba(Storage)/FTP Server/Media Server/Printer Server
- Guest Network
2.4GHz guest network ? 1
5GHz guest network ? 1
- Certification
CE, FCC, RoHS
Package Contents
- Archer C7 AC1750 Wireless Dual Band Gigabit Router Archer C7
- 3 detachable antennas
- Power supply unit
- Ethernet Cable
- Quick Installation Guide
- System Requirements
- Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Windows 8/8.1/10
- MAC OS, NetWare, UNIX or Linux
Environment
- Operating Temperature: 0 Degrees Celsuis - 40 Degrees Celsuis (32 Degrees Farenheit - 104 Degrees Farenheit )
- Storage Temperature: -40 Degrees Celsuis - 70 Degrees Celsuis (-40 Degrees Farenheit - 158 Degrees Farenheit )
- Operating Humidity: 10%- 90% non-condensing
- Storage Humidity: 5%- 90% non-condensing
What's in the box
1 X TP-Link Archer C7 Wireless Dual Band Gigabit Fibre Router
