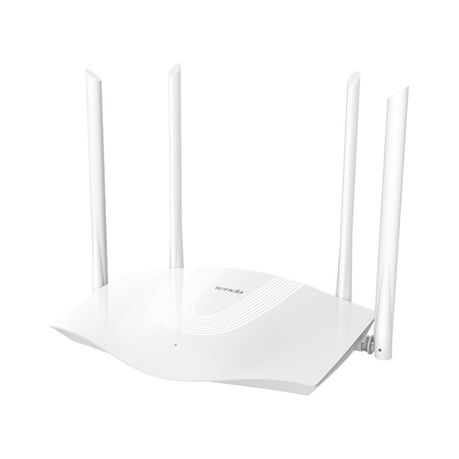

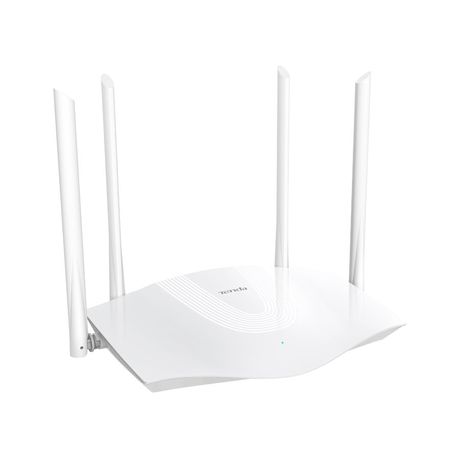

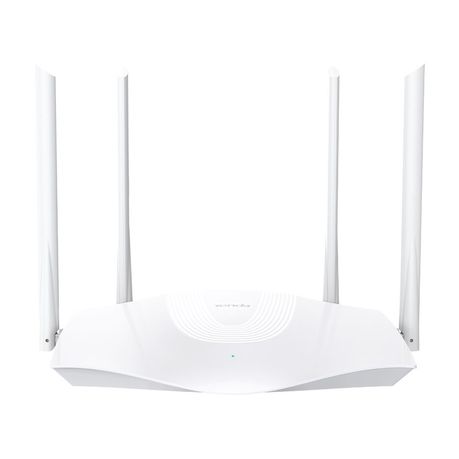

Tenda Wi-Fi 6 Dual Band AX 6dBi 4 Port Gigabit Router | TX3

Tenda's W-TX3 is an IPv6, 802.11ax (Wi-Fi 6) router with 4 Gigabit Ethernet ports.

Supports next-gen Wi-Fi 6 standard

The 5GHz band works at up to 1201Mbps, while the 2.4GHz frequency offers up to 574Mbps, serving a combined bandwidth of 1775Mbps.

The unit makes use of WPA3 security, BSS Colouring as well as MU-MIMO and OFDMA technology to significantly improve network performance and efficiency.

The W-TX3 is compatible with the Tenda WiFi App enabling remote management of your device.

Supports next-gen Wi-Fi 6 standard.

Antenna Gain: 4x 6dBi
Beam-width: 360°
Data Rate: 2.4GHz: 574Mbps; 5GHz: 1200Mbps

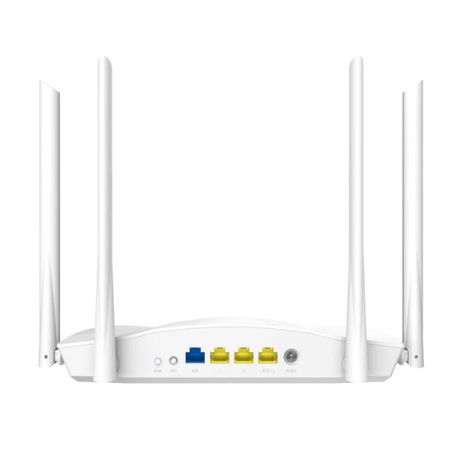

Ethernet Ports: 3x 10/100/1000 LAN ; 1x 10/100/1000 WAN
Hardware Button: WPS ; Reset Button
Max. Power Consumption: 11W
Mounting: Desktop
Operating System: Tenda OS (Web GUI or Phone APP)
Operating Temperature: 0? to 40?
PoE Input: None
PoE Output: None
Power Input: 12V DC 1A Power Supply (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 12V 1A
USB Ports: None

Dimensions: 237.6 x 153.1 x 45mm

TX3 adopts the latest generation of Wi-Fi 6 with dual band concurrency rates of up to 1775 Mbps (2.4GHz: 574 Mbps, 5GHz: 1201 Mbps).
With 1.5GHz high-performance quad-core processor units, the network load capacity has been greatly improved.
The response you need is instantly quicker, and the long-term operation is more stable.
With MU-MIMO+OFDMA technology, significantly improve network performance and efficiency, allows more devices to access the Internet at the same time, lowering latency, multiplayer online games and HD-videos are smoother.
TX3 is the preferred router for smart home system.

Standard&Protocol:
IEEE802.3, IEEE802.3u,IEEE802.3ab

Interface
110/100/1000Mbps WAN port
310/100/1000Mbps LAN ports

Antenna
4*6dBi external antennas

Button
1* WPS?1*Reset button

Power
Input?AC 100-240V~50/60Hz 0.6A
Output?DC 12V?1A

Dimension
9.356.031.77 in (237.6153.145mm)(WDH)

LED
SYS*1

Wireless Standards
IEEE 802.11ac/a/n/ax 5GHz
IEEE 802.11b/g/n/ax 2.4GHz

Data Rate
5GHz: Up to 1201Mbps
2.4GHz: Up to 574Mbps

Frequency
Simultaneous dual band 2.4 & 5GHz

Transmit Power
CE:
<20dBm(2.4G)
<23dBm(5G)

Basic Features
SSID Broadcast: Enable/Disable
Transmission Power: high, medium, low
Beamforming
MU-MIMO

Wireless Security
WPA-PSK,WPA2-PSK, WPA/WPA2-PSK
WPA3-SAE/WPA2-PSK
Wireless Security: Enable/Disable
WPS(WiFi Protected Set-up) fast encryption

Internet Connection Type
PPPoE, Dynamic IP, Static IP PPPoE(Russia), PPTP(Russia), L2TP(Russia),Unifi,Maxis,Maxis-special,Manual
Operating Mode
Wireless Router Mode
Universal Repeater Mode
WISP Mode

DHCP Server
DHCP Server
DHCP Client List
DHCP Reservation

Virtual Server
Port Forwarding
DMZ Host
UPnP

Security
Client Filter
Parental Control (support black list and white list)
Remote Web Management

Firewall
Forbid UDP flood attack
Forbid TCP flood attack
Forbid ICMP attack
Forbid WAN PING from internet

Special Features
Smart Traffic Prioritisation
PPPoE Username/password Clone
Smart WiFi Schedule
Smart LED on/off
Tenda Cloud
Tenda App
Alexa

DDNS
no-ip,Oray, 88ip,DynDNS

VPN
PPTP server
PPTP client
L2TP client

Software Other
Bandwidth Control
Guest Network
IPTV
VLAN
MAC Clone
Static Routing
System Log
Backup & Restore configurations
Firmware upgrade online
Firmware upgradeable via browser
Supports IPv6

Temperature
Operating Temperature: 0? ~ 40?
Storage Temperature: -40? ~ 70?.

Humidity
Operating Humidity:10% ~ 90% RH non-condensing
Storage Humidity: 5% ~ 90%RH non-condensing.

Certification
CE/FCC/RoHS

EIRP Power (Max.)
2.400-2.4835GHz:19.86dBm (EIRP)
5.150-5.250GHz:22.96dBm (EIRP)

Package Content
Wireles Router1

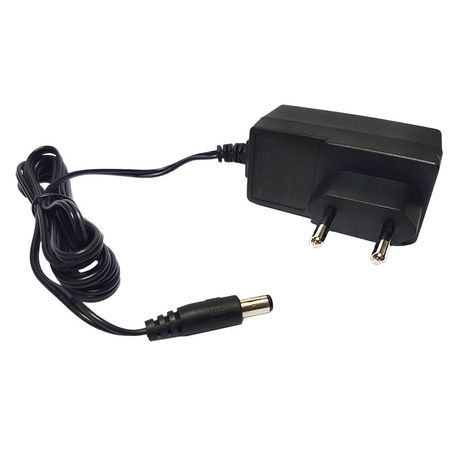

Power Adapter 1
Install Guide1
Ethernet Cable1

What's in the box
Wireles Router1
Power Adapter *1
Install Guide1
Ethernet Cable*1
