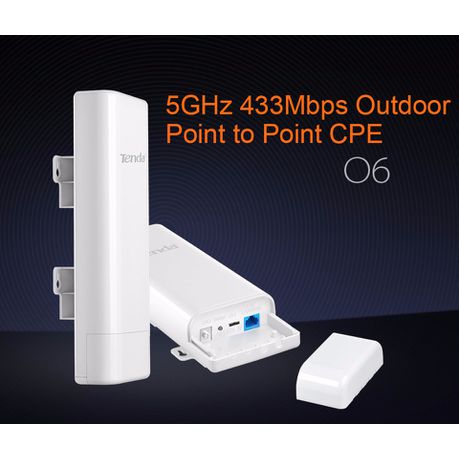

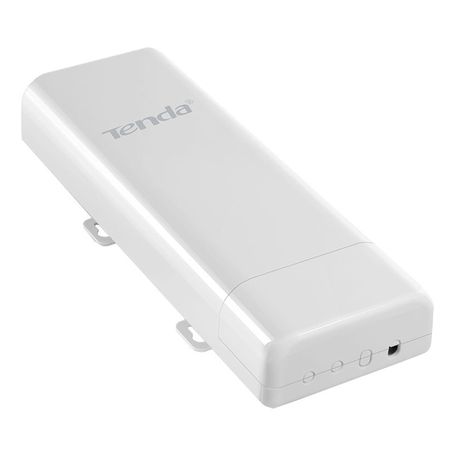

Tenda O6 5GHz 16dBi 11AC Gigabit Outdoor CPE

O6 5GHz 16dBi 11AC Gigabit Outdoor CPE

What it does
O6 5GHz Outdoor CPE is designed for PtP&P2MP solutions for video surveillance transmission and wireless broadband access. Adopts of 11ac wireless technology and gigabit ethernet Port design, the maximum throughput for ptp connection can be up to 450Mbps. It features with 16dBi dual polarization directional antenna to provide an efficient way to pick up and maintain a stable long-range connection.

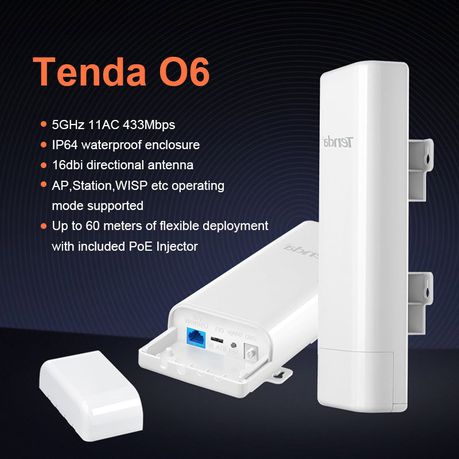

Main Features
-5GHz 11AC 867Mbps
-16dbi directional antenna
-One Gigabit Ethernet Port
-IP65 waterproof enclosure
-6000V Lightning Protection
-AP, Station, WISP operating mode supported

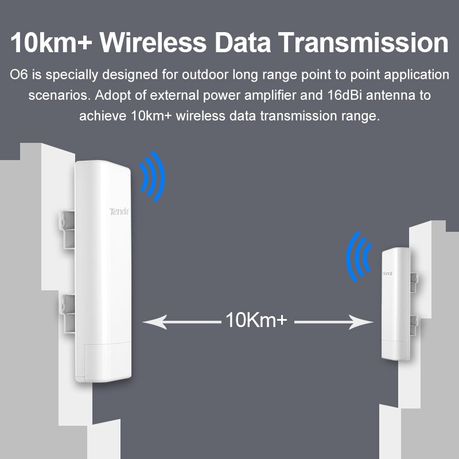

10+km transmission Range
O6 adopts of the independent external power amplifier and 16dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network up to 10km.

P2P connection throughput up to 450+Mbps
O6 adopt 11AC wave2 technology, it delivers an 867Mbps speed rate at 5GHz radio. Come with Gigabit ethernet LAN port design, the maximum throughput test for PtP connection can be up to 450Mbps.

Flexible power supply method enable
it easy to deployment
O6 support PoE 802.3af/at, 24V 0.5A Passive PoE and 12V 1A DC power supply optional. It helps the engineer to deploy the device flexibly.

TD-MAX-Tenda TDMA proprietary protocol
TD-MAX is Tenda TDMA (Time Division Multiple Access) proprietary protocols to improve performance and capacity for wireless P2MP outdoor application scenarios. In an outdoor environment, the CPE use highly directional antennas to connect to the Basestation from distances that can span several kilometres. the CPE can't sense each other, they become“hidden nodes” and cannot coordinate access to the wireless channel. Thus the Basestation experiences frequent collisions from stations transmitting simultaneously.
As the network scales, these collisions build up exponentially, increasing latency and lowering throughput. With TD-MAX, it coordinates all the data transmission and allocates time to active clients to provide greater noise immunity performance when compared to the conventional 802.11 CSMA/CA (Carrier Sense Multiple Access / Collision Avoidance) protocols.

Professional Outdoor Design
Equipped with an IP65 waterproof enclosure and high-quality hardware design, O6 can work in various weather conditions, such as sunshine, rainfall or extremely low/high-temperature environment.

Easy to Setup and Manage
O6 comes with centralized management software that helps users easily to manage all the devices in the network from a single PC-CPE Assitant.
O6v2

Multiple Application Scenarios
WISP(Client+Router) Mode
Wirelessly connect to WISP station/hotspot to share Internet to local wireless and wired network.

Long-Distance Wireless Connection
One work as AP mode and another work as Station mode to create a long-distance wireless connection for video surveillance and data transmission.

Product Information
Model
O6V2.0
Dimension
27094.8667.5mm
Deployment
Pole Mount
Application Scenarios
PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance
Hardware
Frequency Range
5GHz
Compliant Standards
IEEE 802.11a/n/ac
Maximum Wireless Rate
867Mbps
Interfaces
110/100/1000Mbps Ethernet Port
Antenna Polarization
Dual Polarization Directional Antenna
Antennas Gain
16dBi
Antenna Beamwidth
Horizontal: 30° Vertical: 30°

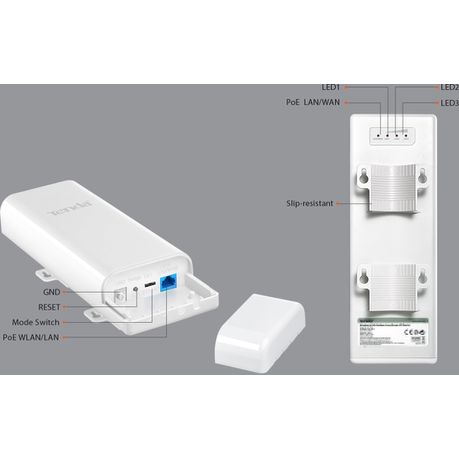

GND
1GND
Reset Button
1Reset Button
Power Consumption
6.5W
Waterproof Level
IP65
LED Indicator
PoE/LAN,LED1,LED2,LED3
Power Method
PoE 802.3af/at
24V0.5A Passive PoE
12V 1A DC
Lightning Protection
6000V
Passive PoE
Passive power over ethernet via PoE/LAN (?4,5pins
-7,8pins ) up to 60 meters
Voltage range: 21-25V DC
Reception Sensitivity
11a 6Mbps -95dBm±1.5dBm
11n MCS7 HT20 -72dBm±1.5dBm
11ac MCS9 HT80 -64dBm±1.5dBm
Software
TDMA
Support
Operating mode
AP/Station/WISP/P2MP/WDS Repeater/Router
Enable/Disable Wireless Radio
Support
SSID Hidden
Support
Wireless Client isolation
Support
SSID Isolation
Support
Channel Bandwidth
20/40/80MHz
Channel Shift
Support
Wireless Access Control
Support
Weak Signal Client Limitation
Support
Transmission Power
Adjustable power by 1dBm
WMM Capable
Support
APSD Capable
Support
Wireless Security
64/128 WEP,WPA-PSK,WPA2-PSK,WPA
Transparent Bridge
Support
VLAN Tagging for SSID
Support
DHCP Server
Support
VPN Pass-Through
PPTP,L2TP
Remote Web access
Support
Schedule Reboot
Support
Page Timeout
Support
Ping Watchdog
Support
Dyndns
noip, dyndns.org
Network Diagnoses
Ping, Traceroute, Signal Scan
Time
Support
Firmware upgrade
Support
Backup/Restore Configuration
Support
Username Managerment
Support
System Logs
Support
Managed By Controller
PC Software CPE Assistant
Others
Package Contents
15GHz 16dBi 11AC Gigabit Outdoor CPE
1PoE Power Adapter
1Quick Installation Guide
Operation Temperature
-30? ~ 60?
Storage Temperature
-40? ~ 70?
Operating Humidity
10%~90% non-condensing
Storage Humidity
10%~90% non-condensing
Default login IP
192.168.2.1
Default Login Username
admin
Default Login Password
admin
Certification
FCC/CE/RoHS

What's in the box
15GHz 16dBi 11AC Gigabit Outdoor CPE
1PoE Power Adapter
1*Quick Installation Guide
