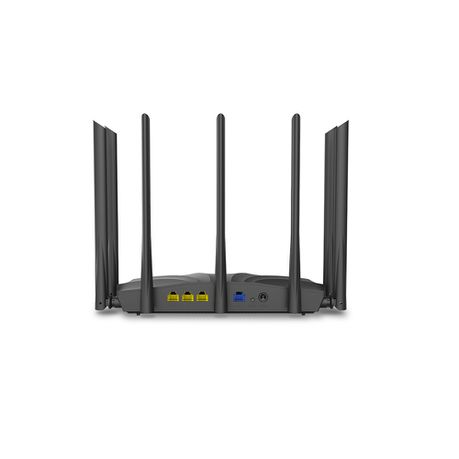

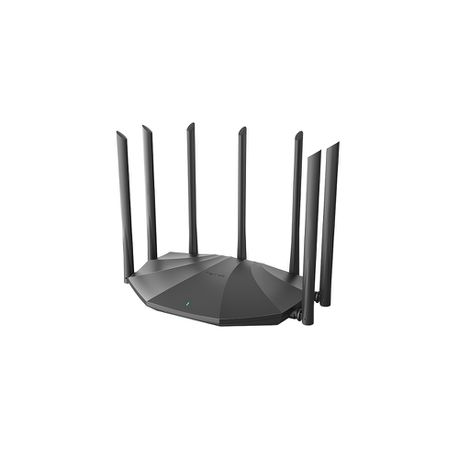

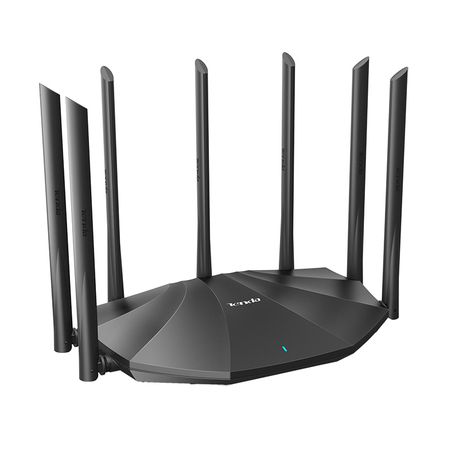

Tenda AC2100 Dual Band Gigabit WiFi Router

AC23 is a dual-band gigabit wireless router specially designed for households with high-speed internet access. It supports 802.11ac wave2 technology and provides WiFi speed up to 2033Mbps (2.4 GHz: 300Mbps, 5GHz: 1733Mbps) to achieve the best performance for your fiber internet connection. Powered by 4X4 MU-MIMO technology of 5GHz band, it provides wider WiFi coverage and faster WiFi speed than regular routers with 3X3 MU-MIMO technology. Equipped with full gigabit ports, it supports up to 1000Mbps bandwidth access. The 28nm 1GHz CPU equipped with a 500MHz co-processor, the dual-core design brings a faster processing speed and provides optimized operation. Featured with 7*6dBi external antennas, AC23 outshines in performance and wall penetration capacity.

Specs:

EIRP Power (Max.):
2.400-2.4835GHz:19.86dBm (EIRP)
5.150-5.250GHz:22.96dBm (EIRP)

Standard&Protocol:
IEEE802.3, IEEE802.3u,IEEE802.3ab

Interface:
110/100/1000Mbps WAN port
310/100/1000Mbps LAN ports

Antenna:
7*6dBi external antennas

Button:
1* WPS/Reset button

Power:
Input?AC 100-240V~50/60Hz 0.6A
Output?DC 12V1.5A

Dimension:
238.9144.340.3mm

LED indicator:
Sys1,WAN1, LAN1,WiFi/WPS1

Wireless Standards:
IEEE 802.11ac wave2/a/n 5GHz
IEEE 802.11b/g/n 2.4GHz

Data Rate:
5GHz: Up to 1733Mbps
2.4GHz: Up to 300Mbps

Frequency:
Simultaneous dual band 2.4 & 5GHz

Transmit Power:
CE:
<20dBm(2.4G)
<23dBm(5G)

Basic Features:
SSID Broadcast: Enable/Disable
Transmission Power: high, medium, low
Beamforming
MU-MIMO

Wireless Security:
WPA-PSK/WPA2-PSK, WPA/WPA2
Wireless Security: Enable/Disable
WPS(WiFi Protected Set-up) fast encryption

Internet Connection Type:
PPPoE, Dynamic IP, Static IP

Operating Mode:
Wireless Router Mode
Universal Repeater Mode
WISP Mode

DHCP Server:
DHCP Server
DHCP Client List
DHCP Reservation

Virtual Server:
Port Forwarding
DMZ Host
UPnP

Security:
Client Filter
Parental Control(support black list and white list)
Remote Web Management

Firewall:
Forbid UDP flood attack
Forbid TCP flood attack
Forbid flood attack
Forbid WAN PING from internet

DDNS:
Support DynDNS, Oray.com, 88ip

VPN:
IPsec pass through
PPTP pass through
L2TP pass through
PPTP server
PPTP client
L2TP client

Special Features:
Smart Traffic Prioritisation
PPPoE Username/password Clone
Smart WiFi Schedule
Smart Power Saving
Smart LED on/off
Tenda Cloud
Tenda App

Other:
Bandwidth Control
IPTV
MAC Clone
Static Routing
System Log
Backup & Restore configurations
Firmware upgrade online
Firmware upgradeable via browser
Supports IPv6

What's in the box
1 x Wireless Router
1 x Power Adapter
1 x Install Guide
1 x Ethernet Cable
