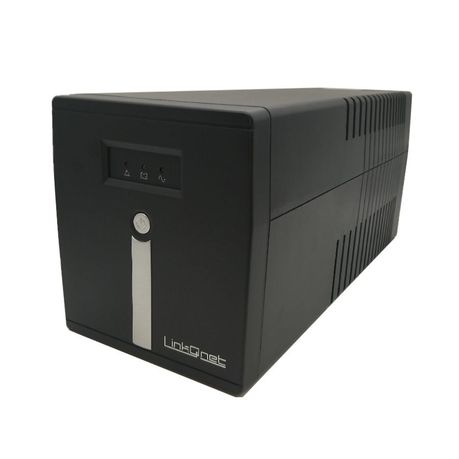

LinkQnet 800VA AVR Line Interactive UPS

Simple solution for home and office users.
- Power Backup Solution: Provides uninterrupted power to your sensitive PC Systems
- Free Software Download: Download the latest software direct from the internet
- Cost Efficient: A small investment will protect your valuable electronics equipment from the hazards of power interruption/failure.
- Energy Saving: The UPS will automatically shut down when no load is connected.
- Compact Size
- Excellent microprocessor control guarantees high reliability.
- Sine wave
- Off-mode charging
- Auto Restart while AC is recovering
- Cold Start function
- Generator compatible
- Model: 800VA-LED-LQ
- Capacity: 800VA/480W
- 3 Led Lights: 1 for Battery level, 1 for Sine wave Frequency and 1 for Warning

Input
- Voltage: 220/230/240VAC
- Voltage Range: 162 – 290VAC
- Frequency Range: 50Hz or 60Hz +/- 1 Hz

Output:
- AC Voltage Regulation (Batt. Mode): +/- 10%
- Frequency Range (Batt. Mode): 50Hz or 60Hz +/- 1 Hz
- Transfer Time: Typical 2 – 6ms
- Waveform (Batt. Mode): Simulated Sine Wave

Interfaces:
- 4 x Power Male ports
- 1 x Female Power Port
- 1 x USB-B Female Printer Port
- 2 x Ethernet Ports

Button:
- 1 x Power Push Button

Battery:
- Battery type & Number: 12V/9Ah x 1
- Typical Recharge Time: 6 – 8hrs up to 90% capacity

Protection:
- Full Protection: Overload, discharge and overcharge protection
Environment:
- Humidity: 0 – 90 RH @ 0 Degree Celsius – 40 Degree Celsius (non-condensing)
- Noise level: Less than 40dB

What's in the box
1 x 800VA UPS
1 x USB-A to USB-B Printer Cable
2 x Power Female to Male Cables
