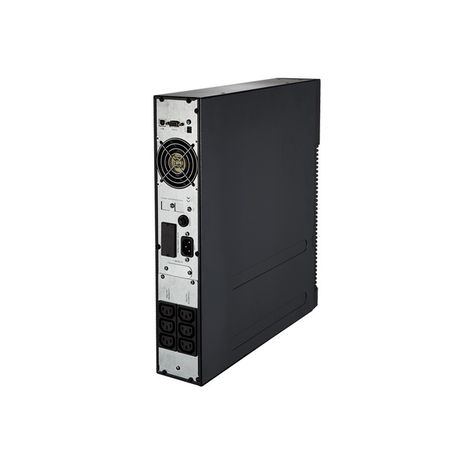

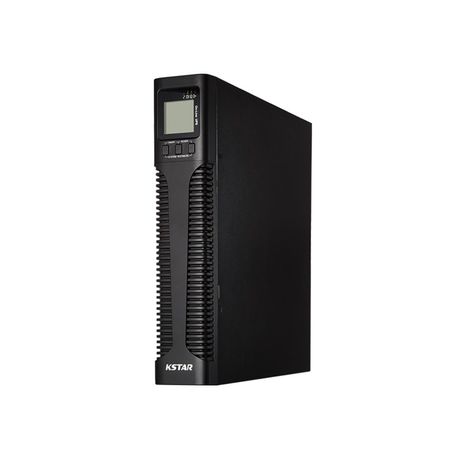

Kstar 1000Va Online Rack Ups Usb/Lcd - Black

Kstar 1000Va Online Rack Ups Usb/Lcd - Black

Features:
- True double-conversion
- Rack - mounted and Floor - standing tower can be convertible
- Patented Mimic LCD of which content can be rotated according to the type of deployment
- Digital control guarantees high reliability
- Output receptacle control for non - critical load shedding capability
- ECO mode operation for energy saving
- Emergency power off function (EPO)
- Generator Compatible
- Communications: RS-232, USB, SNMP card (optional), Relay card (Optional)
- Bypass can be used when UPS is off (Stted in LCD)
- Cold start

Input:
- Norminal Voltage : 208 / 220 /230 / 240Vac (L+N+PE)
- Operating Voltage Range : 110-300Vac @ (0-60%) Load, 120-300Vac @ (60-70%) Load, 140-300Vac @ (70-80%) Load, 160-300Vac @ (80-100%) Load
- Operating Frequency Range : 50Hz: 45-55Hz, 60Hz: 55-65Hz Auto Sensing
- Power factor : > 0.85 @ 25% Load, >0.95 @ 50% Load, > 0.97 @ 75% Load, > 0.99 @ Nominal Voltage & 100% Load

Output:
- Output Voltage : 208 / 220 / 230 /240Vac : 230Vac (Default)
- Power Facttor : 0.9
- Voltage Regulation : +- 1%

Frequency:
- Synchronized Range : 45 - 55Hz +- 0.02Hz @ 50Hz, 55-65Hz +- 0.02 Hz @ 60Hz
- Battery Mode & None Synchronized Range : (50/60 +- 0.02)Hz
- Crest Factor : 3:1

Harmonic Distortion (THDv):
- <3% with linear load
- <5% with non-linear load

Efficiency:
- AC Mode : 88%
- Battery Mode : 84%
- ECo mode : 94%

Battery:
- Battery Type : 12V/9AH
- Numbers : 2
- Maximum Charging Current (A) : 1.0
- Charging Voltage (Vdc) : 27.4 +- 1%
- Protect : Over -Voltage (14.7v) / Low - voltage (10v)

Protection:
- Overload Line Mode : 105% -150 %, 30s turn to bypass mode; > 150% 300ms turn to bypass mode
- Capacity Battery Mode : 105%-150%, exceed 30s shutdown; > 150% exceed 300ms shutdown

Alarm:
- Battery Mode : Sounding every 4 seconds
- Battery Low : Sounding every second
- Overload : Sounding every 0.5 second
- Fault : Continuously Sounding

Management:
- Smart RS-232 / USB (Preferential) : External Modbus card supported by RS232, Software supports Windows Family, Linus, FreeBSD
- Intelligent Slot : SNMP (Standard or mini) independent to RS - 232 (Optional)

Environment:
- Operating Temperature : 0 -40C
- Humidity Range : 0 - 95% (Non-condensing)
- Altitude : < 1500m
- Noise Level : <50dB @ 1 Meter

Standards
Safety : IEC/EN62040-1
EMC : IEC/EN62040-2

Specifications:
Model : UBR10
Capacity (VA/Watts) : 1000VA/900W
- Waveform : Pure Sinewave
- Transfer Time : Utility to Battery : 0ms; Utility to Bypass : 4ms 9Typical)
- Indicators: LED & LCD Display : Load / Battery /Input / Output / Operating Mode Information
- Dimension W x D x H (mm) : 440 x 430 x 86.5
- Net Weight (kg) : 13.2

What's in the box
1 x Kstar UBR10
1 x USB Cable
1 x Manual
1 x CD
