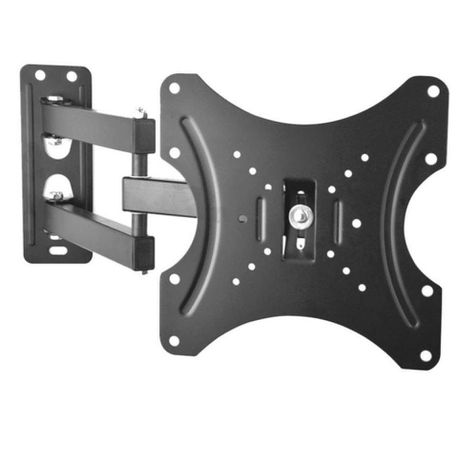

Type: TV Rack
Applicable size: 14-42 inches
Material: 1.3 / 1.8 mm thick cold tie plate
Distance from the wall: 60 - 430mm
Max Capacity: 20kg
Angle of inclination:
VESA standard pitch: 75X75mm, 100X100mm, 150X150mm 200X200mm
Model: CP301

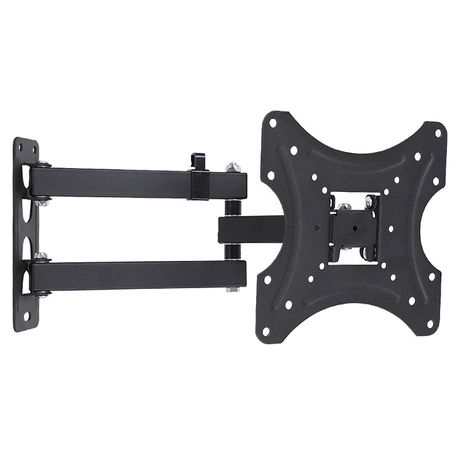

Arm length: 60-320 mm
Hole Length: 200mm(those within 200 can be used)
Hole Width: 200mm(those within 200 can be used)

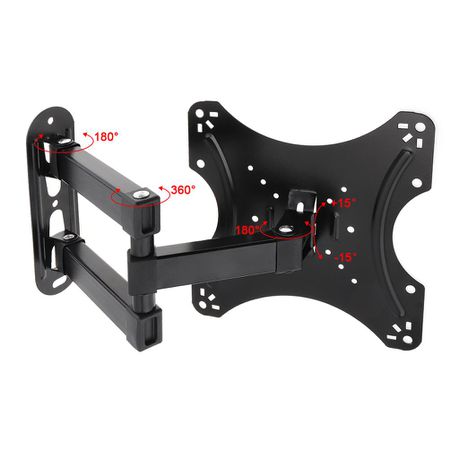

Adjust Angle:Up and down by 30 degrees,left and right can adjust 180 degrees..
Features:
- The one-piece panel is simple and easy to operate.
- Automatic telescopic adjustment design, stretchable and rotatable.
- The key parts are thickened, the structure is stable, and the ability to withstand weight is strong.
- PC material design,with good flexibility, scratch resistance,beautiful appearance.
- Can rotate 90 degrees left and right, do not worry about the viewing angle proplem.
- The tilt elevation angle can be adjusted to -15° to 15°.
- High-intensity rotating shaft that can withstand multiple rotations without deformation.
- Safety screw design ensures no offset under load.
Applicable scope: Suitable for most HDTV flat screen TVs, LCD TVs, LED TVs, plasma TVs. For example, TCL, Philips, Sharp AQUOS, Sanyo, Plasma TV. Suitable for home, entertainment, public places and commercial establishments such as living room, KTV, bar, airport, train station, bus station, shopping mall, store waiting hall, lounge, large conference room, classroom, lobby and restaurant.
Note:
- When purchasing, check that the hole spacing of the TV is the same as the product and that the weight is within the tolerance of the product.
- The quantity of product accessories will be somewhat deviant, but it will not affect installation and usage.
Installation Steps:
- Step 1: Take out the tools you want to use first.(Screw,Plastic anchor, Inner hexagon spanner,Plastic hole,Screw cap ,Spanner).
- Step 2: Installation of solid concrete wall.
- Step 3: Connect the panel to the back of the monitor.
- Step 3: Adjust the angel of the LCD between -5° to +5° to a suitable position by hands.
Package Weight : 1380.0 G / 48.68 Ounces
Package Dimensions (LWH) : 29023065 MM / 11.429.062.56 Inches
Retail Packaging: Yes, Colored Box
What's in the box
1 x TV Wall Bracket
1 x Installation Accessories
