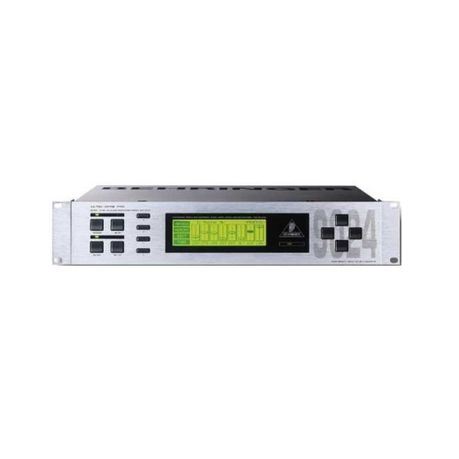

Behringer Ultra-dyne Pro DSP9024 Dynamic Processor

The DSP9024 offers six freely definable bands of dynamic processing plus a program-adaptive 3-band exciter, tube emulation and an integrated delay for “look-ahead” parameter adjustment. Interactive signal analysis and unique automatic functions enable you to get results fast, whether you need multiband compression, loudness maximization, de-essing or selective gating.

High-end 24-bit A/D and D/A converters for ultra-high dynamic range and resolution of detail with selectable sampling rate of 44.1 or 48 kHz

Ultimate 6-way multi-band dynamics processor for analog and digital mastering and sound reinforcement systems

6-band compressor with separate peak limiter section for “inaudible” compression. No side-effects, such as “bass pumping”, etc.

6-band gate with adjustable threshold, hold time, release time and peak width
ULTRAMIZER® automatically adjusts output level and signal density for maximum perceived loudness

VIRTUOSO® function for super-easy, program-dependent and self-learning program setup

3-band harmonics exciter with user-definable balance for odd/even harmonics and unique “kick” control

Extremely sophisticated tube emulation with selectable tube types (12AX7, 12AY7, EL34, EL84) for authentic tube sound

Internal 600 ms delay enables a “look ahead” for intelligent, anticipating processor function

Ultra-accurate level peak meter with peak hold and selectable reference levels (+4 dBu / -10 dBV / Dig Max)

Full MIDI parameter and snapshot control allow for real-time editing

Extremely versatile presets give you outstanding and instant sound results for numerous standard applications

100 settings can be stored under any alphabetic name; memory backed by a long-life battery

Extremely flexible stereo link, band link and clone functions

24-bit AES/EBU interface for digital inputs and outputs at 32, 44.1 and 48 kHz (optional)

Large high-resolution LCD graphic display with high-contrast LED backlight

Servo-balanced inputs and outputs on gold-plated XLR and ¼“ TRS connectors for high signal integrity

Relay-controlled hard bypass with an auto-bypass function during power failure (fail-safe relay)

High-quality components and exceptionally rugged construction ensure long life

Designed and engineered in Germany

What's in the box
1 x Behringer Ultra-dyne Pro DSP9024
