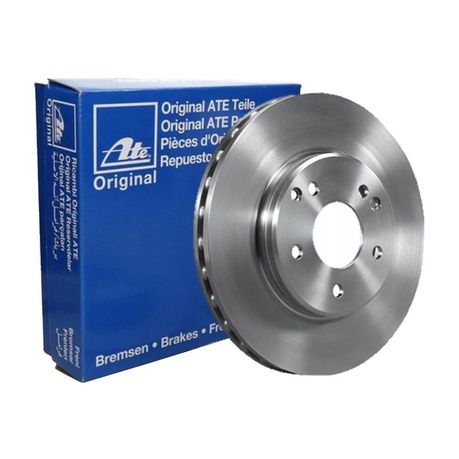

Ate Brake Disc - 109.0155

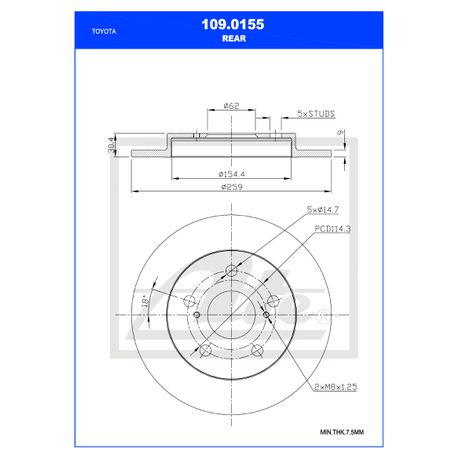

Ate Brake Disc Specifications:

Part Number: 109.0155
Outer Diameter (mm): 259
Disc Thickness (mm): 9
Minimum Thickness (mm): 7.5
Height (mm): 30.4
PCD: 114.3
Number of holes:5
Spigot (mm): 62
Inner Height (mm): 154.4
Thread/Hole Size (mm): 14.7
Disc Type (S=Solid, V=Vented): S
About Vendor
Ate brake discs are known as some of the best on the market thanks to first-class materials, accurAte manufacturing and extensive testing.
Features & benefits

Heat compensating groove regulates flux in friction ring surfaces,
Problem-free bedding in of brake pads due to reduced surface roughness,
Optimum braking performance - only quality materials used,
Smallest tolerances for run-out and Dtv - no judder,
No steering wheel vibration - simply drive off with balanced brake discs,
Close tolerance of centre bore - reduces imbalance and vertical
out-of-true,
Ate brand quality - Peace of mind from many years of experience&
excellence.

Technical data

Tight shape and positional tolerances ensure a high degree of accuracy
Ece R90 Certified

Warranty

Warranty is conditional on being fitted by qualified technicians according to manufacturers instructions.
Fully Guaranteed against faulty components and workmanship.
Safety critical parts to be fitted by Qualified Technicians in an approved workshop.

What's in the box
1 x Brake Disc
