ASUS RT-AX58U AX3000 Dual Band WiFi 6 Router

ASUS AX3000 Dual Band WiFi 6 Router

ASUS RT-AX58U

• Next-Gen Wi-Fi Standard - Supporting the latest Wi-Fi standard 802.11AX (Wi-Fi 6) and 160MHz bandwidth for better capacity and efficiency.
• Ultra-fast Wi-Fi Speed – RT-AX58U supports 160MHz bandwidth and 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 3000Mbps — 574 Mbps on the 2.4GHz band and 2402 Mbps on the 5GHz band.
• Increase Capacity and Efficiency – Supporting not only MU-MIMO but also OFDMA technique to efficiently allocate channels, communicate with multiple devices simultaneously
• Commercial-grade Security - lifetime free AiProtection, powered by Trend Micro™, blocks internet security threats for all your connected smart devices.
• Better Partner with Mesh System - Compatible with ASUS AiMesh Wi-Fi system for seamless whole-home coverage.

AX3000 Dual Band WiFi 6 (802.11ax) Router supporting MU-MIMO and OFDMA technology, with AiProtection Pro network security powered by Trend Micro, compatible with ASUS AiMesh WiFi system.

Specifications
Network Standard
- IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IPv4, IPv6

Product Segment
- AX 3000 (2402Mbps+574Mbps)

Coverage
- Large homes

Data Rate
- 802.11a: 6,9,12,18,24,36,48,54 Mbps
- 802.11b: 1, 2, 5.5, 11 Mbps
- 802.11g: 6,9,12,18,24,36,48,54 Mbps
- 802.11n: up to 300 Mbps
- 802.11ac: up to 867 Mbps
- 802.11ax (2.4GHz): up to 574 Mbps
- 802.11ax (5GHz): up to 2402 Mbps

Antenna
- External antenna x 4

Transmit/Receive
- 2.4 GHz 2 x 2
- 5 GHz 2 x 2

Processor
- 1.5 GHz tri-core processor

Memory
- 256 MB Flash
- 512 MB RAM

Wi-Fi Technology
- OFDMA (Orthogonal Frequency Division Multiple Access)
- Beamforming: standard-based and universal
- 1024-QAM high data rate
- 20/40/80/160 MHz bandwidth

Operating Frequency
- 2.4 GHz / 5 GHz

Encryption
- WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise, WPA2-Enterprise, WPS support

Firewall & Access Control
- Firewall: SPI intrusion detection, DoS protection
- Access control?Parental control, Network service filter, URL filter, Port filter

Management
- UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log

VPN Support
- IPSec Pass-Through
- PPTP Pass-Through
- L2TP Pass-Through
- PPTP server
- OpenVPN server
- PPTP client
- L2TP client
- OpenVPN client

WAN Connection Type
- Internet connection type: Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP

Utilities
- Router setup wizard; Firmware restoration; Device discovery

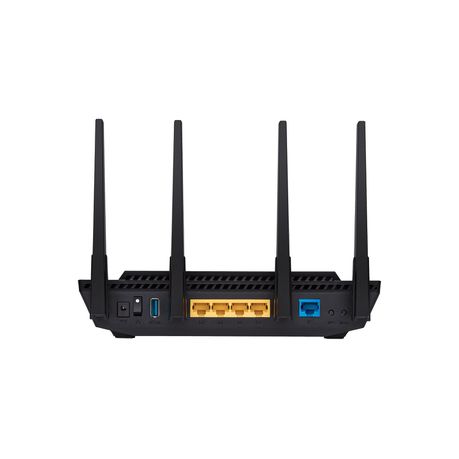

Ports
- RJ45 for Gigabits BaseT for WAN x 1
- RJ45 for Gigabits BaseT for LAN x 4
- USB 3.1 Gen 1 x 1

Features
- Router app
- MU-MIMO
- Smart Connect
- Traffic Analyzer
- Adaptive QoS
- AiProtection Pro
- Parental Control
- Guest Network :
- VPN server: PPTP Server, OpenVPN Server, IPSec server
- VPN client : PPTP client, L2TP client, OpenVPN client
- NAT Pass-Through: PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay
- Mac OS Backup
Enhanced media server (AiPlayer app compatible)
- Image: Jpeg
- Audio: mp3, wma, wav, pcm, mp4, lpcm, ogg
- Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
- AiCloud personal cloud service
- 3G/4G data sharing
Download Master
- Support bt, nzb, http, ed2k
- Support encryption, DHT, PEX and magnet link
- Upload and download bandwidth control
- Download scheduling
AiDisk file server
- Samba and FTP server with account management
- IPTV support
- Roaming Assist
- OFDMA
- Beamforming

Button
- WPS Button, Reset Button, Power Switch

LED Indicator
- Power x 1
- 2.4G x 1
- 5G x 1
- LAN x 4
- WAN x 1

Power Supply
- AC Input: 110V~240V(50~60Hz)
- DC Output: 19 V with max. 1.75 A current
- DC Output: 12 V with max. 2 A current

OS Support
- Windows 10
- Windows 8
- Windows 7
- Mac OS X 10.6 or Above

Operation mode
- Wireless router mode
- Access point mode
- Media bridge mode

Warranty
- 3 Years

Package Contents
1 x RT-AX58U
1 x RJ-45 Cable
1 x Power adapter
1 x Quick Start Guide
1 x Warranty Card

What's in the box
1 x RT-AX58U
1 x RJ-45 Cable
1 x Power adapter
1 x Quick Start Guide
1 x Warranty Card
