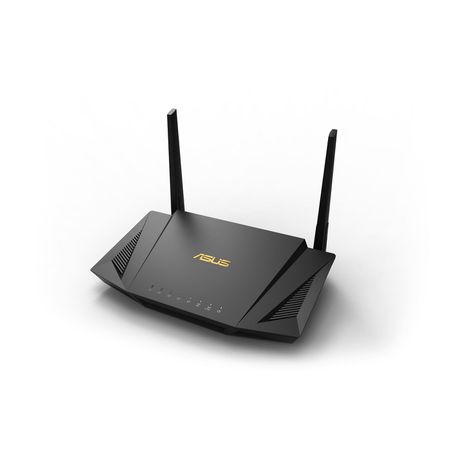

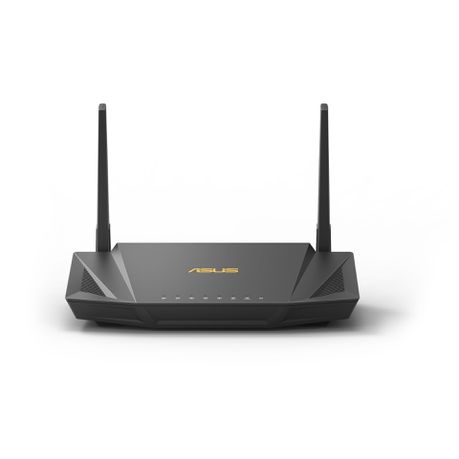

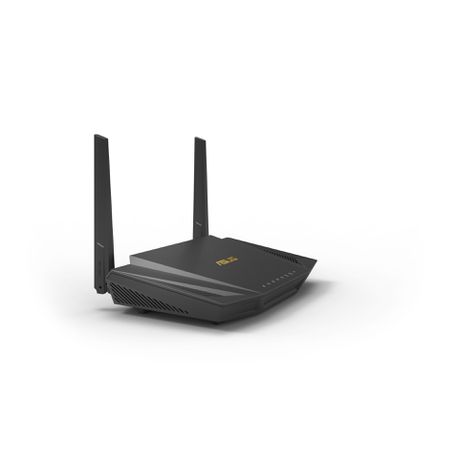

ASUS RT-AX56U AX1800 Dual Band WiFi 6 Router

ASUS AX1800 Dual-Band Wi-Fi 6 Router

ASUS RT-AX56U

• Next-Gen Wi-Fi Standard - Supporting the latest Wi-Fi standard 802.11AX (Wi-Fi 6) and 80MHz bandwidth for better capacity and efficiency
• Ultra-fast Wi-Fi Speed – RT-AX56U supports 80MHz bandwidth and 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 1800Mbps — 574 Mbps on the 2.4GHz band and 1201 Mbps on the 5GHz band.
• Increase Capacity and Efficiency – Supporting not only MU-MIMO but also OFDMA technique to efficiently allocate channels, communicate with multiple devices simultaneously.
• Commercial-grade Security– lifetime free AiProtection, powered by Trend Micro, blocks internet security threats for all your connected smart devices.
• Better Partner with Mesh System- Compatible with ASUS AiMesh Wi Fi system for seamless whole-home coverage.
• NitroQAM (1024-QAM) technology - NitroQAM (1024-QAM) technology enables a 25% data rate while the older standard is limited to 256-QAM.

AX1800 Dual Band WiFi 6 (802.11ax) Router supporting MU-MIMO and OFDMA technology, with AiProtection Pro network security powered by Trend Micro, compatible with ASUS AiMesh WiFi system.

Specifications
Network Standard
- IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IPv4, IPv6

Coverage
- Large homes

Data Rate
- 802.11a : 6,9,12,18,24,36,48,54 Mbps
- 802.11b : 1, 2, 5.5, 11 Mbps
- 802.11g : 6,9,12,18,24,36,48,54 Mbps
- 802.11n : up to 300 Mbps
- 802.11ac : up to 867 Mbps
- 802.11ax (2.4GHz) : up to 574 Mbps
- 802.11ax (5GHz) : up to 1201 Mbps

Antenna
- External antenna x 2

Transmit/Receive
- 2.4 GHz 2 x 2
- 5 GHz 2 x 2

Processor
- 1.5GHz quad-core processor

Memory
- 256 MB Flash
- 512 MB RAM

Wi-Fi Technology
- OFDMA (Orthogonal Frequency Division Multiple Access)
- Beamforming: standard-based and universal
- 1024-QAM high data rate
- 20/40/80 MHz bandwidth

Operating Frequency
- 2.4 GHz / 5 GHz

Encryption
- WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support

Firewall & Access Control
- Firewall: SPI intrusion detection, DoS protection
- Access control?Parental control, Network service filter, URL filter, Port filter

Management
- UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log

VPN Support
- IPSec server
- PPTP server
- OpenVPN server
- PPTP client
- L2TP client
- OpenVPN client

WAN Connection Type
- Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP

Utilities
- Router setup wizard; Firmware restoration; Device discovery

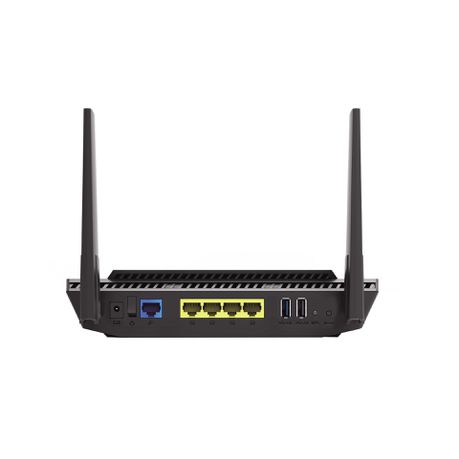

Ports
- RJ45 for Gigabits BaseT for WAN x 1
- RJ45 for Gigabits BaseT for LAN x 4
- USB 2.0 x 1
- USB 3.1 Gen 1 x 1

Features
- Router app
- MU-MIMO
- Smart Connect
- Traffic Analyzer
- Adaptive QoS
- AiProtection Pro
- Parental Control
- Guest Network :
- VPN server : PPTP Server, OpenVPN Server, IPSec server
- VPN client : PPTP client, L2TP client, OpenVPN client
- AiCloud personal cloud service
- 3G/4G data sharing
Printer Server
- Multifunctional printer support (Windows only)
- LPR protocol support
Download Master
- Support bt, nzb, http, ed2k
- Support encryption, DHT, PEX and magnet link
- Upload and download bandwidth control
- Download scheduling
AiDisk file server
- Samba and FTP server with account management
- Dual WAN
- IPTV support

Button
- WPS Button, Reset Button, Power Switch

LED Indicator
- Power x 1
- LAN x 4
- WAN x 1
- Wi-Fi x 2

Power Supply
- AC Input : 110V~240V(50~60Hz)
- DC Output : 12 V with max. 2 A current

OS Support
- Windows 10
- Windows 8
- Windows 7
- Mac OS X 10.6 or Above
- iOS 9.0 or higher
- AndroidTM

Warranty
- 3 Years

Package Contents
1 x RT-AX56U
1 x RJ-45 Cable
1 x Power adapter
1 x Quick Start Guide
1 x Warranty Card

What's in the box
1 x RT-AX56U
1 x RJ-45 Cable
1 x Power adapter
1 x Quick Start Guide
1 x Warranty Card
