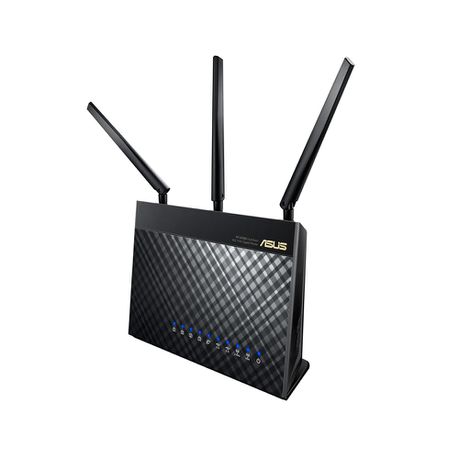

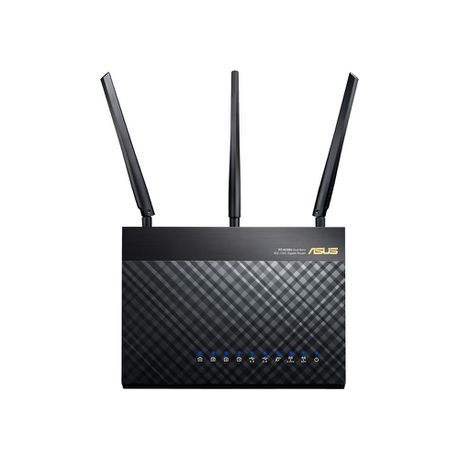

Asus RT-AC68U AC1900 Dual Band Gigabit WiFi Gaming Router

Asus RT-AC68U AC1900 Dual Band Gigabit WiFi Gaming Router
ASUS RT-AC68U_V3

• Great Wi-Fi - Enjoy the combined dual-band speeds of up to 1900Mbps, 3X faster than 802.11n routers
• Ultrawide Coverage - High-performance antennas and ASUS AiRadar eliminate dead spots
• Commercial-grade Security - AiProtection, powered by Trend Micro, blocks and neutralizes internet security threats for all your connected smart devices
• AiMesh Supported - Connect your RT-AC68U to other compatible ASUS routers to create a powerful and flexible whole-home Wi-Fi network
• Flexible Connectivity Options - 5X Gigabit Ethernet ports, 1X ultrafast USB 3.1 port and 1X USB 2.0 port

Specifications
Network Standard
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IPv4, IPv6

Product Segment
AC1900 ultimate AC performance : 600+1300 Mbps

Coverage
Large homes

Data Rate
802.11n : up to 450 Mbps
802.11n TurboQAM : up to 600 Mbps
802.11ac : up to 1300 Mbps

Antenna
External antenna x 3

Transmit/Receive
MIMO technology
2.4 GHz 3 x 3
5 GHz-1 3 x 3

Memory
128 MB Flash
256 MB RAM

Operating Frequency
2.4 GHz / 5 GHz

Encryption
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support

Firewall & Access Control
Firewall?SPI intrusion detection,DoS protection
Access control?Parental control, Network service filter, URL filter, Port filter

Management
UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Universal Repeater, System Event Log

WAN Connection Type
Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
Multicast Proxy support
Multicast Rate Setting support

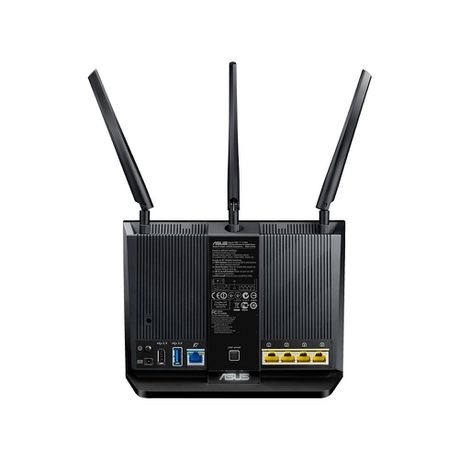

Ports
RJ45 for 10/100/1000/Gigabits BaseT for LAN x 4, RJ45 for 10/100/1000/Gigabits BaseT for WAN x 1
USB 2.0 x 1
USB 3.0 x 1

Features
Airtime Fairness
Adaptive QoS
AiProtection
Parental Control
Guest Network : 2.4 GHz x 3, 5 GHz x 3
VPN server : IPSec Pass-Through, PPTP Pass-Through, L2TP Pass-Through, PPTP Server, OpenVPN Server
VPN client : PPTP client, L2TP client, OpenVPN client
Mac OS Backup
Enhanced media server (AiPlayer app compatible)
- Image : Jpeg
- Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg
- Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
AiCloud personal cloud service
3G/4G data sharing
Printer Server
- Multifunctional printer support (Windows only)
- LPR protocol support
Download Master
- Support bt, nzb, http, ed2k
- Support encryption, DHT, PEX and magnet link
- Upload and download bandwidth control
- Download scheduling
AiDisk file server
- Samba and FTP server with account management
Dual WAN
IPTV support
Roaming Assist

Button
WPS Button, Reset Button, Power Button, Wireless on/off Button

LED Indicator
Power x 1
Wi-Fi x 2
LAN x 4
WAN x 1
USB x 2

Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 1.75 A current

OS Support
Windows 10
Windows 8.1
Windows 8
Windows 7
Windows Vista
Windows 2000
Windows ME
Windows XP
Windows Server 2003
Windows Server 2008
Mac OS X 10.1
Mac OS X 10.4
Mac OS X 10.5
Mac OS X 10.6
Mac OS X 10.7
Mac OS X 10.8
Mac OS X
Linux Kernel (Support Ubuntu only)
Linux

Operation mode
Wireless router mode
Range extender mode
Access point mode
Media bridge mode

Warranty
36 Months

What's in the box
1 x RT-AC68U Wireless-AC1900 Dual Band Gigabit Router
1 x RJ-45 cable
1 x Power adapter
1 x QSG
1 x Support CD(user manual and ultility)
