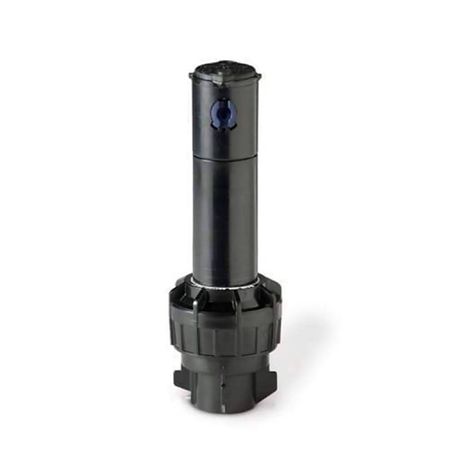

5000 P/FC R/BIRD Shrub Rotor

Offering unmatched performance from 25' to 50', Rain Bird 5000 series rotors are ideal for residential, light commercial and commercial applications. By combining the industry’s only Triple-Blade Wiper Seal with unrivalled Rain Curtain™ nozzles, 5000 series rotors give you even coverage and enduring reliability that the best contractors demand.

Exclusive Triple Blade Wiper Seal
Providing seven times the leak protection of single-blade wiper seals, the Triple-Blade Wiper Seal makes 5000 rotors the most leak-resistant rotors on the market. Designed to keep water in and debris out, the Triple-Blade Wiper Seal saves you time and money—and it saves your reputation, too.

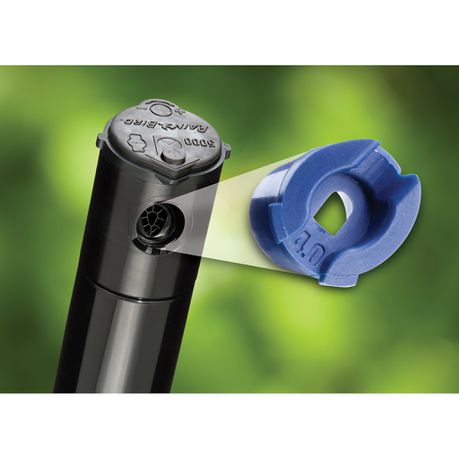

Industry-Leading Rain Curtain Nozzles
Engineered to provide a uniform spray pattern that competitors can’t match, Rain Curtain nozzles deliver large water droplets for superior wind resistance and gentle close-in watering that eliminates brown spots around the head.

Features:
Rain Curtain Nozzle Technology:
- Rain Curtain Nozzles standard on all 5000 Series Rotors
- Large water droplets for greater wind resistance
- Effective close-in watering
- Even distribution over the entire radius
- Tree of nozzles including four low-angle (angle of trajectory 10°) and eight standard angle Rain Curtain Nozzles (angle of trajectory 25°) provides 7.6m to 15.2m distance of throw
- Self-aligning nozzles

Installation and Maintenance:
- Slip clutch mechanism for quick adjustment on installation
- Faster maintenance with a new self-cleaning arc adjustment screw
- The 5000 Plus features a flow shut-off device to stop the flow of water to a particular head while the system is still in operation
- Top-adjust arc adjustment requiring only a flathead screwdriver
- Radius adjustment screw allows up to 25% radius reduction without changing nozzles

Durability:
- Heavy-duty cover assembly for extra durability in residential or commercial applications
- Heavy-duty retract spring assures positive pop-down
- Pressure-activated triple-blade multi-function wiper seal protects internals from debris and assures positive pop-up and retraction
- Additional O-rings and seals for extra protection in "gritty" water

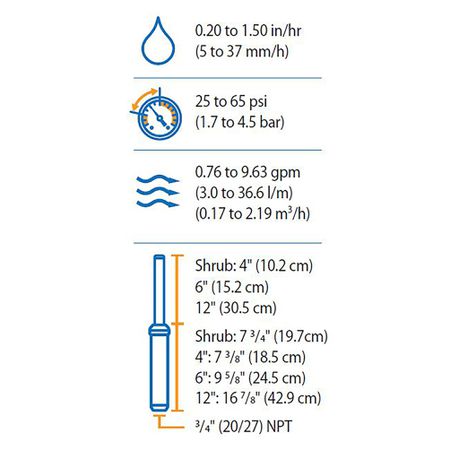

Operating Range:
- Precipitation rate: 5 to 37 mm/hr
- Radius: 7,6 to 15,2m
- Radius may be reduced up to 25% with radius reduction screw
- Pressure: 1,7 to 4,5 bar
- Flow Rate: 4,2 to 36,6 l/m

Specifications:
- 3/4" NPT female bottom threaded inlet
- Reversing full and part circle adjustment 40° – 360°
- Full circle only adjustment 360°

Dimensions:
- Overall body height: 19,7cm
- Exposed surface diameter: 4,1 cm

What's in the box
1 x 5000 P/FC R/BIRD Shrub Rotor

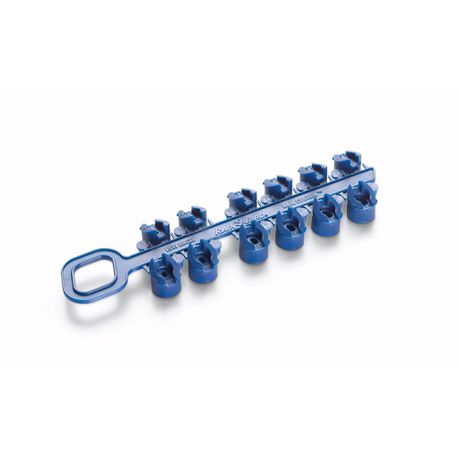

1 x Nozzle Rack
