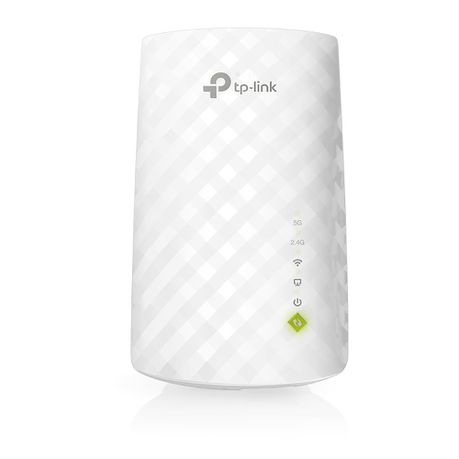

TP LINK RE220 AC750 Wi-Fi Range Extender

RE220
- Boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly
- Compatible with 802.11 b/g/n and 802.11ac Wi-Fi devices
- Dual band speeds up to 750Mbps (1)
- Miniature size and wall-mounted design make it easy to deploy and move flexibly

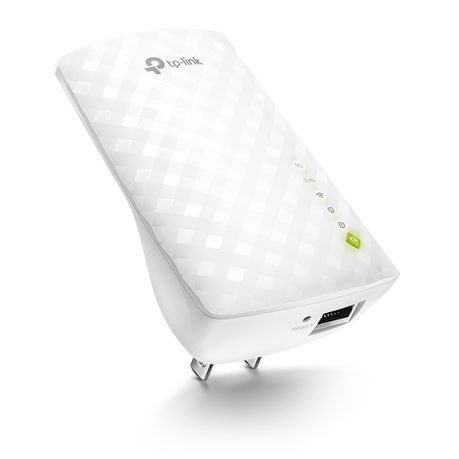

- Ethernet port allows the Extender to function as a wireless adapter to connect wired devices

Eliminate Wi-Fi Dead Spots
Extend High-Speed WiFi Across Your Home

Features:
- Boost Your Wi-Fi to hard-to-reach Areas: Place the RE220 between your wireless router and wireless devices, expanding Wi-Fi coverage while eliminating Wi-Fi dead zones with dual-band Wi-Fi speeds that can reach up to 750 Mbps (1). Make the most of your ISP speeds by streaming HD videos, gaming online and other bandwidth-intensive tasks.
- Stable Dual Band Connection for More Devices (1): The RE220’s wireless AC technology creates faster and stronger Wi-Fi connections across your home for all your devices. Dual 2.4 GHz and 5 GHz bands provide Wi-Fi connections for up to 20 devices, allowing you to enjoy a stable Wi-Fi experience on all your devices.

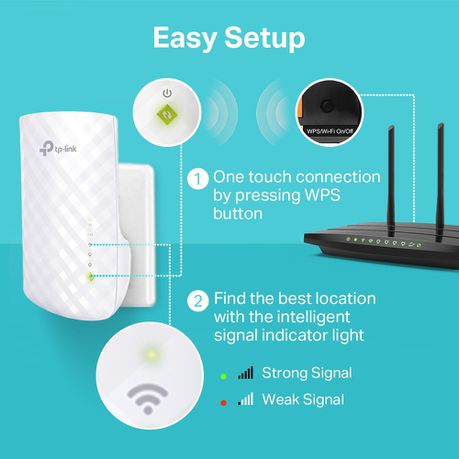

• Simple Two-Step Setup:
  Step 1: Press the WPS button on the router and RE220 to easily connect the extender to the network. Or connect the extender via Tether app or Web UI if your router doesn’t support WPS.
  Step 2: Relocate the extender to a better location for optimal Wi-Fi coverage with the help of the smart signal indicator light.
• An Access Point and Wireless Adapter: The Ethernet port of RE220 can easily turn your wired Internet connection into a wireless access point. It can also function as a wireless adapter to connect wired devices.
• High Speed Mode for Maximized Performance: High Speed Mode uses one dedicated Wi-Fi band as backhaul and another dedicated Wi-Fi band as an access point to maximize the bandwidth on extender's Wi-Fi.
• Universal Compatibility: The RE220 is compatible with any of your existing Wi-Fi router or access points, making it easy to expand and strengthen your Wi-Fi network. Works with any Wi-Fi router or access point (2).
• Smart Management by Tether App: Set up and manage your Wi-Fi through the TP-Link Tether app on your smartphone (Android, iOS).
  Note:
  (1): Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range and coverage specifications along with the number of connected devices were defined according to test results under normal usage conditions. Actual wireless transmission rate, wireless coverage, and number of connected devices are not guaranteed, and will vary as a result of 1) environmental factors, including building materials, physical objects and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead and 3) client limitations, including rated performance, location, connection quality, and client condition.
  (2): The product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or is non-standard or out-dated.

Specifications:
Hardware Features:
- Plug Type: US
- Standards and Protocols: IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
- Interface : 1 x 10/100M Ethernet Port (RJ45)
- Button: RE (Range Extender) Button, Reset Button
- Power Consumption: About 6.5W
- Antenna: 3 x internal

Wireless Features:
- Frequency: 2.4GHz & 5GHz
- Signal Rate: 5GHz: Up to 433Mbps ; 2.4GHz: Up to 300Mpbs
- Reception Sensitivity:
2.4G: 270M: -70dBm@10% PER
130M: -70dBm@10% PER
108M: -73dBm@10% PER
54M: -75dBm@10% PER
11M: -86dBm@8% PER
6M: -92dBm@10% PER
1M: -94dBm@8% PER
5G: 390M: -60dBm@10% PER
29.3M: -83dBm@10% PER
180M: -64dBm@10% PER
13.5M: -87dBm@10% PER
78M: -68dBm@10% PER
6.5M: -90dBm@10% PER
54M: -75dBm@10% PER
6M: -90dBm@10% PER
- Transmit Power: < 20 dBm (EIRP)
- Wireless Modes: Range Extender
- Wireless Functions: WMM (Wi-Fi Multimedia)
Wireless Statistic
Domain Login Function
- Wireless Security: 64/128/152-bit WEP
WPA-PSK / WPA2-PSK

Others:
- Certification: FCC, RoHS
- System Requirements: Windows 98SE / NT / 2000 / XP / Vista / 7 / 8 / 10; Mac OS; NetWare; UNIX Linux
Environment:
- Operating Temperature: 0°C ~ 40°C
- Storage Temperature: -40°C ~ 70°C
- Operating Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 90% non-condensing

What's in the box
1 x AC750 Wi-Fi Range Extender RE220
1 x Quick Installation Guide
