Rain Bird 100DVF Solenoid Valve Buy Online in Zimbabwe

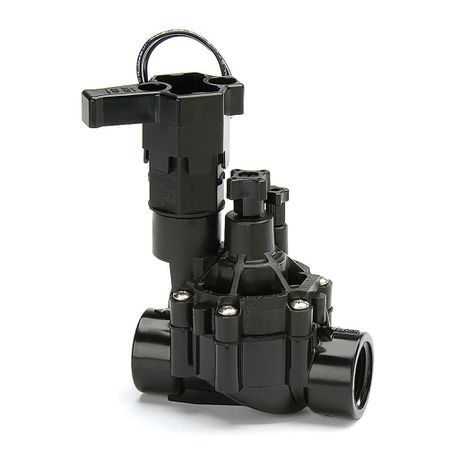

Rain Bird 100DVF Solenoid Valve

Regular price
Sale price
Regular price
Sold out
Unit price

  • Overview
  • Reviews
  • Guaranteed Service
  • Delivery and Returns
  • Questions and Answers

DV/DVF Series
Diaphragm valve – the industry leader for over 25 years
The Rain Bird DV/DVF valve is the premium valve product chosen by more professionals than any other valve on the market. Its long history of reliable performance makes it the natural choice for your landscape. Its consistent, problem-free performance means you can spend less time thinking about your irrigation system and more time enjoying your landscape.

- Double-filtered (diaphragm and solenoid) pilot-flow design for maximum reliability and grit resistance
- Buna-N, balanced pressure diaphragm with self-cleaning 90 mesh (200 micron) pilot water filter and captive spring
- Energy-efficient, low-power encapsulated solenoid with captured plunger and 90-mesh (200 micron) solenoid filter
- Unique, easy-to-turn pressure assisted flow control mechanism (DVF models only)
- External bleed to manually flush the system of dirt and debris during installation and system start-up
- Internal bleed for spray-free manual operation
- Accepts Rain Bird TBOS latching solenoid for use with most battery-operated controllers
- Operates in low-flow and Landscape Drip applications when a 200 mesh filter is installed upstream
- Not recommended for use with two-wire control systems

- Pressure: 1.0 to 10.4 bar
- 100-DVF Flow Control Model: 0.05 to 9.085 m³/h; 0.01 to 2.52 l/s); For flows below 0.68 m³/h; 0.19 l/s) or any Landscape Drip application, use a 200 mesh filter installed upstream
- Water temperature: Up to 43°C
- Ambient air temperature: Up to 52°C
- Solenoid coil resistance: 38 Ohms
- 24 VAC 50/60Hz (cycles per second) solenoid power requirement: 0.450A inrush current, 0.25A holding current

- Height : 14.2cm
- Length: 11.1cm
- Width: 8.4cm

- Rain Bird recommends flow rates that result in discharge velocities in the supply line not to exceed 2.3 m/s in order to reduce the effects of water hammer
- Rain Bird residential valves cannot be used with PRS pressure regulating modules
- Not recommended for use with two-wire systems

What's in the box
1 x Rain Bird 100DVF Solenoid Valves
