PFERD Chain Saw Sharpener CS-X-5,5

Chain saw sharpeners from PFERD are very well suited for the manual sharpening of saw chains. Manual sharpening is more economic and much gentler than machine-based sharpening and can prolong the operating life of the saw chain.

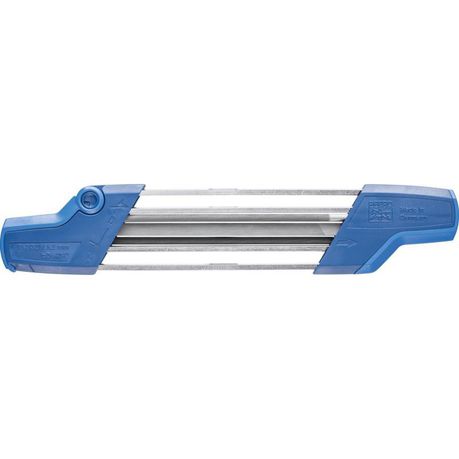

The Chain Sharp CS-X chain saw sharpener stands out due to its excellent file position, ergonomic shape and easy operation. The device provides a sharpening angle of 30° as well as a defined depth gauge distance.

Advantages:
- Flexible use on-site due to compact device design
- Simultaneous sharpening of saw teeth and depth gauge adjustment
- Easy to use due to defined sharpening angles
- Long operating life due to interchangeable files
- Precise and uniform sharpening results, even for inexperienced users

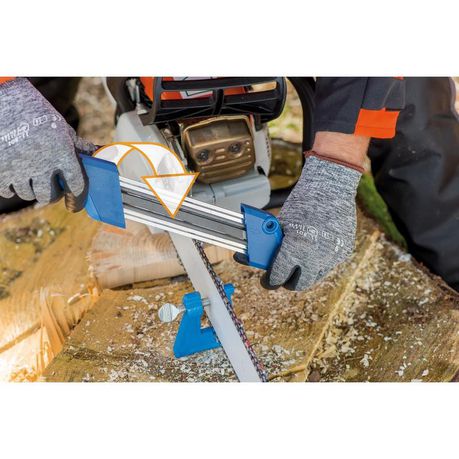

- Easy handling allows the operator to turn the device over to change from the right to the left tooth – no conversion work required.
- Can be used on steel materials up to 1,200 N/mm²

Specifications:
- Suitable for chain saw file diameter: 5,5mm or 7/32’
- Chain Pitch: .404
- Depth Gauge Distance: 0.75mm

Operating instruction:
- Please ensure correct and suitable personal protective equipment is worn while using the tool.

What's in the box
The CS-X sharpener is supplied with detailed operating instructions in a transparent, reusable plastic pouch which protects against damaged and dirt.

Each pouch contains:
- One Sharpener (CS-X Chain Sharp)
- One Depth Gauge File (4132 – 200mm x 9.0mm x 6.0mm Cut 2)
- Two Classic Line Chainsaw Files (412 – 200mm x 5.5mm / 7/32’ Classic Cut)
