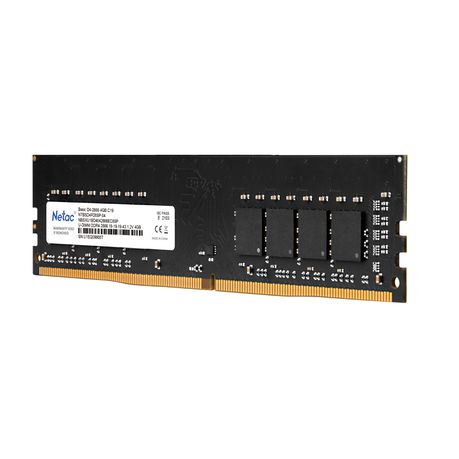

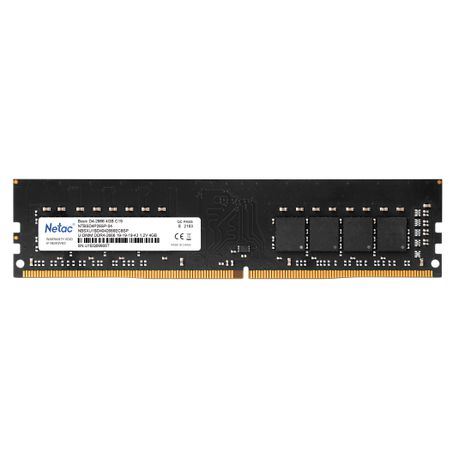

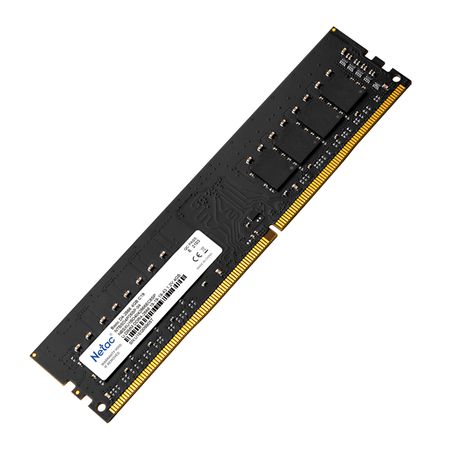

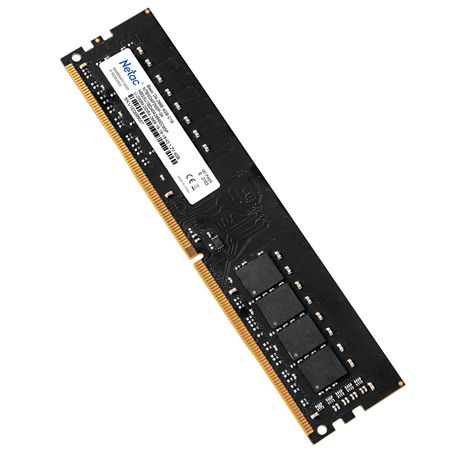

Netac Basic 16GB DDR4-3200 CL16 DIMM
Netac Basic DDR4
Original Particles
Stable and Compatible
Superior Performance
Lifetime Warranty
Original particles improve the performance of computer
Selected original particles, strict inspection process, 8-layer PCB board, stable performance.
Excellent compatibility
Memory products have passed the motherboard compatibility test of mainstream brands on the market, ensure the stability of the system for along time.
Gold-plated craft gold finger
Gold plating process, stronger conductivity and corrosion resistance.
Smooth computer experience
Video playback and editing
Description
NTBSD4P32SP-16 is a 1G x 64-bit (1R8) or 512M x 64-bit (2R8) SDRAM (Synchronous DRAM), memory module based on eight 1G x 8-bit or sixteen 512M x 8 FBGA components per module. The SPD is programmed to latency timing of 16-20-20 at 1.35V. support XMP, Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
Features
Power Supply: VDD=1.35V Typical
VDDQ = 1.2V Typical
VPP - 2.5V Typical
VDDSPD=2.2V to 3.6V
Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
Low-power auto self refresh (LPASR)
Data bus inversion (DBI) for data bus
On-die VREFDQ generation and calibration
Single-rank
On-board I2 serial presence-detect (SPD) EEPROM
16 internal banks; 4 groups of 4 banks each
Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
Selectable BC4 or BL8 on-the-fly (OTF)
Fly-by topology
Terminated control command and address bus
PCB: Height 1.23” (31.25mm)
RoHS Compliant and Halogen-Free
Product Parameter
Brand : Netac
Series : Basic
Capacity : 16GB
Type : 288-Pin DDR4
Speed : DDR4-3200 (PC4-25600)
Timing : 16-20-20-40
Voltage : 1.35V
CL(IDD) : 16 cycles
Row Cycle Time (tRCmin) : 45ns(min.)
Refresh to Active/Refresh : 350ns(min.)
Command Time (tRFCmin)
Row Active Time (tRASmin) : 26.25ns(min.)
Maximum Operating Power : TBD W
UL Rating : 94V-0
Operating Temperature : 0 C to +70 C
Storage Temperature : -40 C to +85 C
Desktop Ram
What's in the box
1 x Netac Basic 16GB DDR4-3200 Memory Module
1 x Warranty Card
