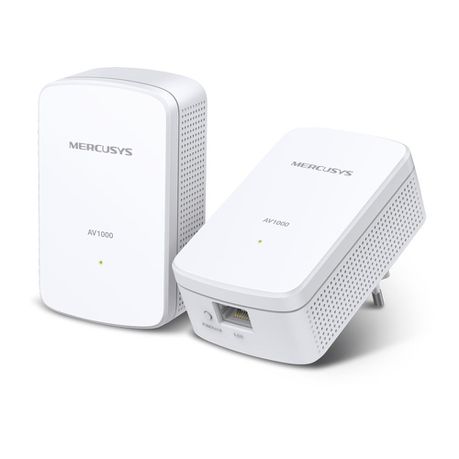

Mercusys MP500KIT AV1000 Gigabit Powerline Starter Kit

MP500 KIT
- 1000 Mbps High-Speed Transfer Rate: Fast and stable transmissions with advanced HomePlug AV2
- Super-Fast Wired Connection: A gigabit port provides high-speed internet to PCs, IPTVs, and game consoles
- Plug & Play: No wiring and configuration required - simply plug in
- Easy Expansion: Expand coverage by simply adding more Powerline adapters

4K Streaming Mate
Enjoy an Extended Network Everywhere
AV1000 Gigabit Powerline Starter Kit

Features:
Where there’s an Outlet, There’s a Network: The MP500 Kit transmits network data via existing electrical circuits, avoiding any negative influence obstacles have on the network. Enjoy a stable extended network with a transmission distance of up to 300 meters (on the same electrical circuit). Perfect for 4K streaming, online gaming and graphics-intensive applications.
- 300 meters Range
- No New Wires or Drilling
- 1000 Mbps HomePlug AV2
Dual Gigabit Transmission. Fast. Unlimited. Enjoyable: Equipped with advanced HomePlug AV2 technology, the maximum powerline transmission rate reaches a stunning 1000 Mbps—with a gigabit port that delivers a high-quality network through any one of your outlets.
Plug & Play: Immediately extend your network as soon as you connect one, without complex wiring and configuration. Simply connect an MP500 adapter to your router and plug another one into any outlet where you need wired internet service.
1. Connect the MP500 to the Router
2. Plug another one into the outlet and connect your device to it
3. Enjoy the extended network over your electrical circuit
Easy Expansion: If a typical two-pack kit doesn’t meet all your networking needs, simply add more Powerline adapters to expand your network to any room.

Hardware Specifications:
Plug Type:

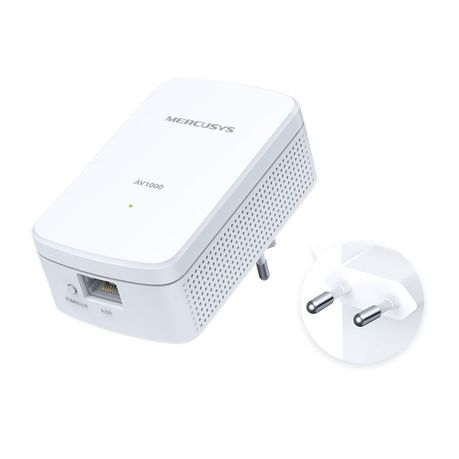

- EU
Standards and Protocols:
- HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Interface:
- Gigabit Ethernet Port
Button:
- Pair/Reset button
Power Consumption:
- Maximum: 2.87 W (220 V/50 Hz)
- Typical: 2.35 W (220 V/50 Hz)
- Standby: 0.64 W (220 V/50 Hz)
LED:
- Power
Range:
- 300 Meters over electrical circuit
Modulation Technology:
- OFDM (PLC)
Encryption:
- Powerline Security: 128-bit AES
Certifications :
- CE, RoHS
Environment:
- Operating Temperature: 0°C ~ 40°C
- Operating Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 90% non-condensing

What's in the box
1 x Powerline Ethernet Adapter (MP500 KIT)
1 x Ethernet cable (RJ45)
1 x Quick Installation Guide
