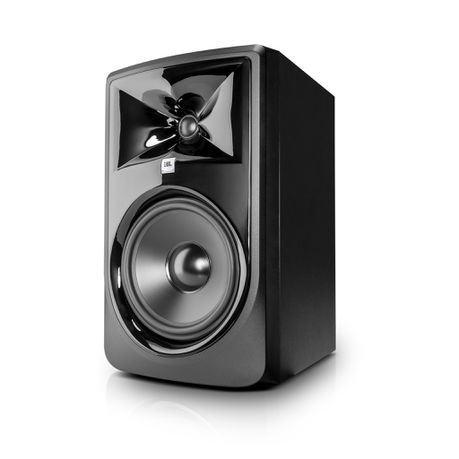

JBL 308P MK II Studio Monitor

Audio engineers, producers, and musicians looking for a high-quality monitoring solution will be impressed with the JBL 308P MkII - Powered 8" Two-Way Studio Monitor, a bi-amplified reference monitor with next-generation drivers, offering high detail, precise imaging, a wide sweet spot, and a remarkable dynamic range to enhance the mix capabilities of any modern workspace.
The magnetically-shielded 308P MkII features dual 56W Class-D amplifiers, which power the 8" low frequency woofer and woven-composite 1" neodymium tweeter. The combined output of the woofer and tweeter offer a frequency response of 45 Hz to 20 kHz with a peak SPL of 112 dB.

The monitor features JBL's Image Control Waveguide technology for accurate audio reproduction and JBL's Slip Stream port design for improved bass response.
The 308P MkII is equipped with a boundary EQ for controlling the low frequency response when placed near a wall, as well as a 3-position HF trim switch.
To ensure flexible connectivity, JBL included a balanced XLR input and a balanced 1/4" TRS input, both of which feature dented level control.
Other features include a selectable input sensitivity switch that ensures compatibility with a range of signal sources. The JBL 308P MkII ships with a power cord.

Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot
High-quality JBL transducers for optimized transient response and improved linearity
Patented Slip Stream low-frequency port for superior bass performance at all playback levels
Dual integrated, custom Class-D amplifiers provide 112W of power for high output and dynamic range
Boundary EQ settings compensate for low-frequency variants introduced by the environment
HF Trim switch adjusts high-frequency output to room acoustics or personal preferences
Flexible connectivity with balanced XLR and 1/4" TRS inputs, +4 dBu / -10 dBV input-sensitivity switch and adjustable volume control
Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space
Strenuous JBL 100-hour full-power test ensures years of reliability
Sleek, modern design provides a visual upgrade to any studio

Specifications:
- Monitor Type Active 2-Way
- Enclosure Bass-Reflex, Shielded
- Power Rating 112 W
- Drivers HF Driver: 1 x 1" / 25.4 mm Dome Tweeter
- LF Driver: 1 x 8" / 203.2 mm Woofer
- Amplification 1 x HF Amplifier: Class-D Rated at 56 W
- 1 x LF Amplifier: Class-D Rated at 56 W
- Frequency Range 37 Hz to 24 kHz (at -10 dB)
- Frequency Response 45 Hz to 20 kHz ± 3 dB
- Maximum Sound Pressure Level (SPL) 110 dB
- Signal-to-Noise Ratio 75 dBA
- Total Harmonic Distortion (THD) <10%
- THD+N < 0.2%
- Maximum Input Level +20.3 dBu (Balanced)
- +6 dBV (Unbalanced)
- Protections and Limiting Peak Limiter
- Crossover Frequency 1800 Hz, 24 dB/Octave Slope
- Crossover Type Linkwitz-Riley
- Audio I/O 1 x XLR Balanced Female Analog Input
- 1 x 1/4" TRS Balanced Female Analog Input

What's in the box
1 x JBL 306P MKII Monitor
1 x Power Cable
