Huawei Body Fat scale 3

Huawei Body Fat scale 3
Model Code Herm-B19 / 55026237
Colour Elegant White

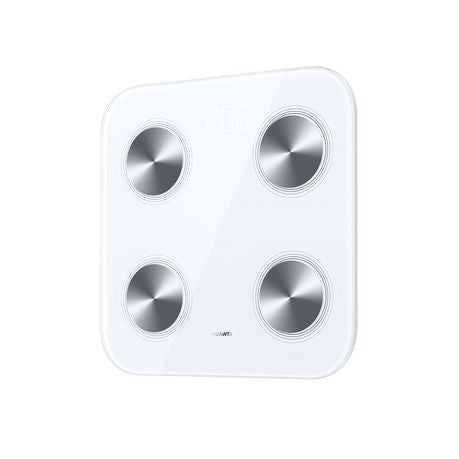

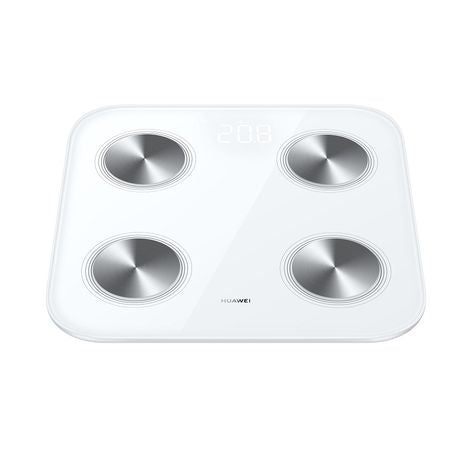

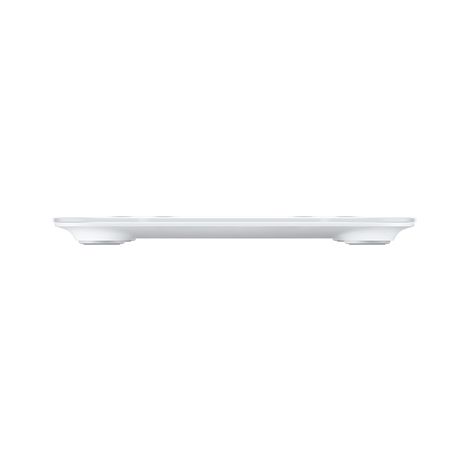

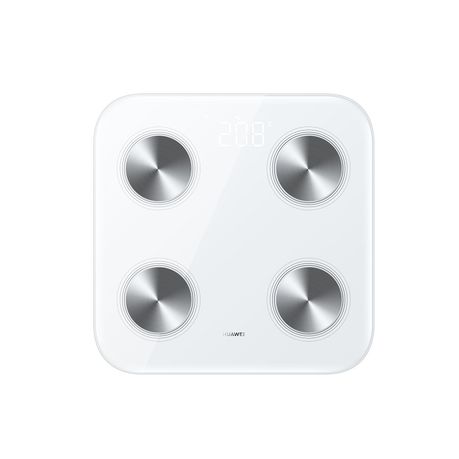

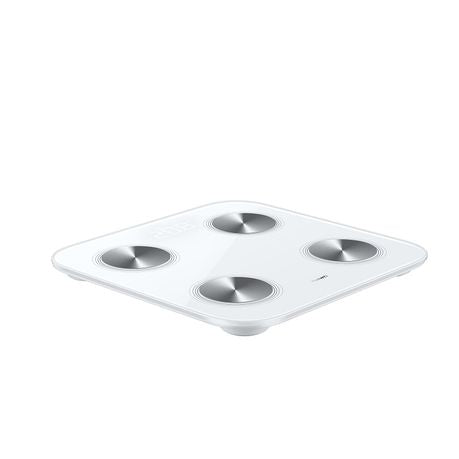

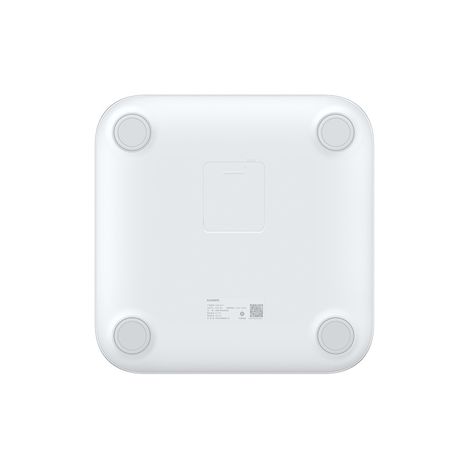

HUAWEI Scale 3is a fashionable, secure, and reliable body fat scale product that can detect human body composition and supports Wi-Fi & Bluetooth dual connection. It integrates features for weight measurement, four-electrode body fat measurement, and heart rate measurement, and can be used by multiple users.

The scales support the following features:

Weight measurement
Body fat measurement
Resting heart rate measurement
Multiple accounts
Automatic syncing of data to the Huawei Health app
Smart household recognition

Download and install the Huawei Health app. When connected to your scale, the Huawei Health app will display your weight, body fat, and other fitness and health data, provide corresponding analysis and suggestions, and deliver body fat measurement reports to help you develop a better understanding of your fitness and health status.
Hardware Specifications
Body

Dimensions (L x W x D): 300 mm x 300 mm x 23.6 mm
Weight: 1.57 kg (excluding the battery)
Material: Tempered glass (weighing surface), ITO film (electrode, used for fat measurement), and ABS (device bottom)

Chip

Weighing and fat measuring chip: CSU18M91
Bluetooth chip: CST92F30
Wi-Fi chip: CSM64F02

Bluetooth
Bluetooth 5.0, and supports BLE (Bluetooth Low Energy) devices

Wi-Fi
IEEE 802.11 b/g/n, 2.4 GHz

Fat measurement
BIA (bioelectrical impedance analysis)

Fat measurement frequency
AC at 50 kHz

Weighing sensor
Resistance strain gauge pressure sensor

Power supply
DC power supply by battery

Battery
DC 6.0 V battery (4 x 1.5 V AAA battery)

Battery lifespan
About 180 days (measurement frequency: three times a day)

Display
Discreet LED display

Software Specifications
Weight measurement
Measures weight (range from 2.5 kg to 150 kg) in jin, kilograms, or pounds.

Body composition measurement
11 overall indicators: weight, BMI (body mass index), body fat rate, skeletal muscle mass, de-fat weight, body water percentage, protein, bone mineral content, BMR (basal metabolic rate), visceral fat level, and heart rate

Heart rate measurement
Supports resting heart rate measurement

Multiple accounts
Support

Smart recognition
Automatically recognizes and measures users based on weight, body fat, and other data. When the smart recognition malfunctions or fails, users can manually determine their own data based on basic information provided.

Historical data storage
Supports storage of a maximum of 512 groups of historical data

Data Synchronization

Online measurement: The real-time results are synced to the Huawei Health app via Bluetooth.
Offline measurement: The results will be automatically uploaded to the Cloud and synced to the Huawei Health app if a Wi-Fi connection is available.

Low battery alarm
When the battery voltage is low for a long time, the LED displays LO and stops the measurement to remind the user to replace the battery.

Power on/off

Power on: When the weight on the scale is greater than 5 kg, the weight measurement feature will be automatically enabled.
Power off: The scale automatically powers off (the screen turns off) and enters low-power mode after finishing a measurement.

Software update
Supports OTA updates

Compatible Phone System
Compatible with phones running Android 5.0 or later, and iOS 9.0 or later

What's in the box
1x Scale
1x Quick Start Guide
